Mechatronic repair kit for DSG S-Tronic 0B5, DL501 - 7Q gearbox
Audi original parts
DSG mechatronics troubleshooting. Depending on the symptoms listed below, this repair kit allows the most stressed components of the mechatronics to be refurbished and avoids the need to change the complete mechatronics.
Also available in pack with an oil change kit (more economical) see > here
Mechatronic repair kit for DSG7 Audi 0B5, S-tronic, DL501 - 7Q gearbox
Audi - VW original parts
Info:
Mechatronic repair kit for 0B5, S-tronic, DL501 - 7Q gearbox
Content:

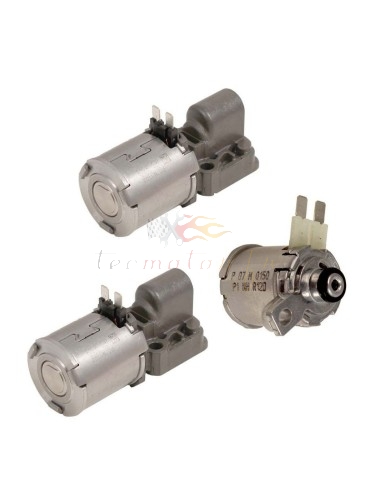

1x solenoid valve N440 with screw and gasket - Valve 4 (for pressure regulation in sub-gearbox 2)
1x solenoid valve N436 with screw and gasket - Valve 4 (for pressure regulation in sub-gearbox 1)
1x solenoid valve N471 with screw - Cooling regulation solenoid (pressure control)
1x PCB2 sensor module with screws
1x PCB1 sensor module with screws
4+2 x rubber shock absorbers
New generation electrical harness (modified by Audi following malfunctions)
Procedure in French for dismantling and reassembling the mechatronics
Email after-sales service package included

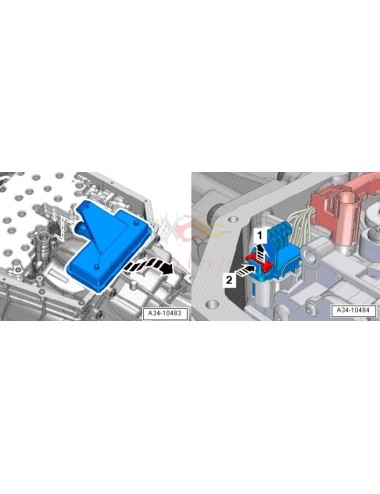

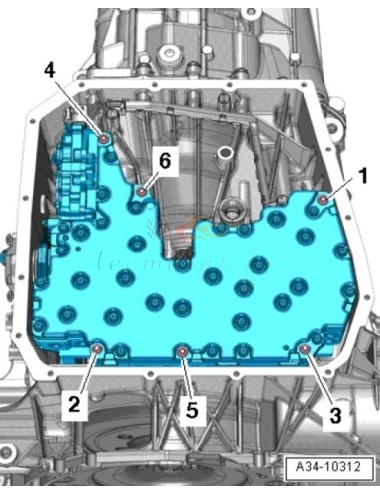

The kit is installed simply by changing the parts via the oil pan without dismantling the transmission.
No reprogramming necessary
Common S-Tronic Problems:
Gears that shift poorly (often 1° and 2°) or reverse and forward gear difficult to engage, unstable engine idling:
These symptoms most often come from the solenoid valves which regulate the pressure of the mechatronics.
In fact, the solenoids are heavily stressed and wear out to the point of causing gearbox failures.
Gearbox overheating warning light, drop in engine power:
Following wear of the temperature control solenoid valve, the oil heats up too much and the car can also fault and limit engine torque, even stopping completely (fault code P17D800).
This original Audi repair kit solves these problems at an infinitely lower cost than in the Audi network.

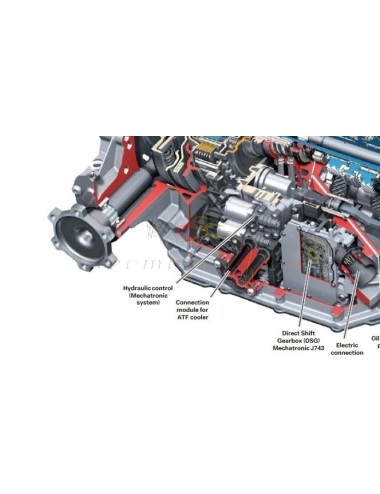

DSG mechanical subgroups:
Sub-box 1
The odd gears (1, 3, 5, 7) are driven by the central primary shaft 1 with the clutch E1.
Sub-box 2
Even gears (2, 4, 6) and reverse are driven by primary shaft 2 (a hollow shaft), with clutch E2.
The S Tronic 7 gearbox equips some of these cars:
Audi A4 (8K2 - 8K5 - 8KH) (11/07--), Audi A5 (8F - 8T) (06/07--), Audi A6 (4G2 - 4G5 - C7) (11/10--), Audi A7 Sportback (4GA) (10/10--), Audi Q5 (8R) (11/08--) Porsche Macan

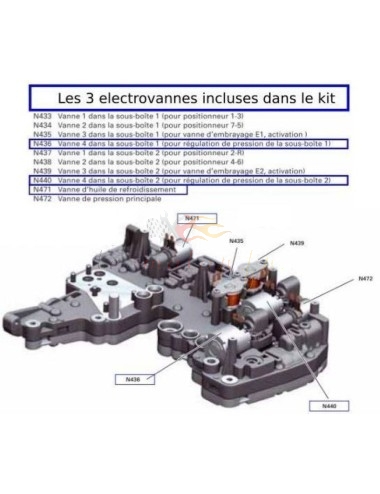

The 0B5 mechatronics solenoid valves:
N433 Valve 1 in subbox 1 (for positioner 1-3) Unavailable
N434 Valve 2 in subbox 1 (for positioner 7-5) Unavailable
N435 Valve 3 in sub-box 1 (for clutch valve E1, activation) available as adaptable
N436 Valve 4 in sub-box 1 (for pressure regulation of sub-box 1) Included in this kit
N437 Valve 1 in subbox 2 (for 2-R positioner) Unavailable
N438 Valve 2 in sub-box 2 (for positioner 4-6) Unavailable
N439 Valve 3 in sub-box 2 (for clutch valve E2, activation) available as adaptable
N440 Valve 4 in sub-box 2 (for pressure regulation of sub-box 2) Included in this kit
N471 Cooling Oil Valve Included in this kit
N472 Main pressure valve Available (excluding kit)
Frequent DSG 0B5 DL 501 fault codes:
P0726 - Engine Control Unit RPM Signal (Invalid Signal)
P1740 - Clutch Temperature Too High
P173C - Valve 1 in sub-box 1 (electrical fault)
P173F - Valve 2 in sub-box 1 (electrical fault)
P174A - Valve 3 in sub-box 1 (electrical fault)
P174B - Valve 4 in sub-box 1 (electrical fault)
P174C - Valve 1 in sub-box 2 (electrical fault)
P174C - Valve 2 in sub-box 2 (electrical fault)
P174E - Valve 3 in sub-box 2 (electrical fault)
P174F - Valve 4 in sub-box 2 (electrical fault)
P176A - Actuator/Speed Selector 1 (non-adjustable)
P176A - Selector 1 cannot be regulated
P176B - Actuator/Speed Selector 2 (non-adjustable)
P176B - Selector 2 cannot be regulated
P179C - Main pressure valve (electrical fault)
P179D - Cooling oil valve (electrical fault)
P17D4 - Valve 3 in sub-box 1 (mechanical malfunction)
P17D8 - Torque limitation due to clutch temperature
P17E0 - Mechanical error of gearbox actuator 1
P17E0 – Actuator/Speed Selector 1 (Mechanical Error)
0B5398048D: This reference is used by sellers of very poor quality Chinese counterfeits.
To avoid wasting time and money, this original guaranteed set is strongly recommended.
Mechatronics OB5 DL501
Product Details
Data sheet
- car brand
- Audi
- Car model
- Audi A4 (8K2 - 8K5 - 8KH) (11/07--) DSG 7 vitesses Quattro
Audi A5 (8F - 8T) (06/07--) DSG 7 vitesses Quattro
Audi A6 (4G2 - 4G5 - C7) (11/10--) DSG 7 vitesses Quattro
Audi A7 Sportback (4GA) (10/10--) DSG 7 vitesses Quattro
Audi Q5 (8R) (11/08--) DSG 7 vitesses Quattro - Motorization
- 2.0 TDI quattro
2.0 TFSI quattro
3.0 TDI quattro
3.0 TFSI quattro
3.2 FSI quattro - Type
- DSG 7 - 0B5 - DCT - S-tronic - DL501 - 7Q
Reparation Mecatronique
Interested in product
Tell us your interest in this product and we will contact you for more details.
Produits complémentaires
500ml box emptying syringe
Oil syringe for filling gearbox
with flexible and transparent tip allowing easier access for oil filling
Laser sighted infrared thermometer
Contactless digital thermometer, allows you to measure temperature remotely
Aim, pull the trigger,
it’s measured and memorized!
Mechatronic main pressure regulator DSG7 box Audi 0B5, S-tronic, DL501 - 7Q
Main line pressure regulation solenoid valve for mechatronics for DSG S-Tronic 0B5, DCT, S-tronic, DL501 - 7Q gearbox
Line pressure solenoid N472
Cooling Solenoid N471
Pump filling tool for DSG gearbox, automatic gearbox with multiple tips
DSG, BVA gearbox filling tool with 20 filling tips
New model:
20 adapters instead of 12.
For easy filling of a DSG or automatic gearbox
7-speed DSG gearbox oil change kit Audi A4, A5, A6, A7, Q5 original Audi DSG oil filter
DSG gearbox drain Audi 7 speed S-Tronic DL501 0B5
7-speed DSG gearbox oil change kit Audi A4, A5, A6, A7, Q5 original AUDI external cartridge and Audi DSG approved oil
0B5 325 429 E DL501
Under-box control solenoid 1 & 2 N436 N440 DSG7 Audi 0B5, DCT, S-tronic, DL501 - 7Q
Under-box control solenoid 1 & 2 N436 N440 DSG7 for mechatronics for DSG box S-Tronic 0B5, DCT, S-tronic, DL501 - 7Q
Mechatronic repair pack with DSG7 gearbox oil change kit Audi 0B5, S-tronic, DL501
Mechatronic repair kit for DSG S-Tronic 0B5, DL501 - 7Q gearbox
Oil change kit with original filter and approved oil
Audi original parts
Assembly and draining instructions in French provided.
- Pack

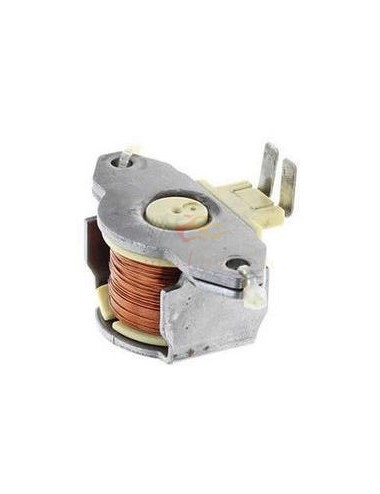

Solenoid Number 3 N435 N439 DSG7 gearbox Audi 0B5, S-tronic, DL501 - 7Q
